PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution

Price : $10,000/sets >=1 sets

Place of Origin : China

MOQ : one

Packaging Details : standard packaging

Delivery Time : Delivery time for minimum order quantity ≤ 30 days

Payment Terms : T/T ‌L/C

Supply Ability : 100 units/day

Brand Name : National Instruments

Model Number : PXIe-5122

warranty : 3 months

customized support : OEM

place of origin : American

brand name : National Instruments

model number : PXIe-5122

Contact Now

National Instruments PXIe-5122 High-Speed Digitizer with Customized OEM Assistance
The National Instruments PXIe-5122 High-Speed Digitizer (Part Numbers: 779967-01, 779967-02, and 779967-03) features advanced SMC engineering with flexible memory options ranging from 8 to 512 MB per channel (4 to 256 million 14-bit samples per channel). Designed for demanding applications including RADAR, ultrasound, and event recognition, this digitizer captures over 1 million triggered waveforms without software intervention in multiple-record acquisition mode.
Key Features
  • 100-MHz, 100 Msamples/sec, 14-bit digitizer in PXI format
  • Two simultaneously sampled channels at 14-bit resolution
  • 100 Msamples/sec real-time and 2.0 Gsamples/sec random interleaved sampling
  • 100 MHz bandwidth with 50 ohm or 1 Mohm input impedance (software selectable)
  • Input range from 200mV to 20V with 75 dBc SFDR and 62 dB SINAD
  • Memory options: 8, 32, or 256 MB per channel
  • Advanced triggering options with 100 ps timestamping
  • Includes IVI-compliant NI-SCOPE driver software with 50+ built-in measurement functions
Technical Specifications
Bus Connector PXI Express
Analog Input Impedance 1 MΩ, 50 ohms
Maximum Bandwidth 100 MHz
Maximum Sampling Rate 100 MS/s
Analog Input Voltage Range -10 V to 10 V
Analog Input Resolution 14 bits
Number of Channels 2
Compatible Operating Systems Windows 2000/XP
Applications
Ideal for automotive testing, communications research, scientific measurement, military/avionics systems, and consumer electronics development. The NI PXIe-5122 is particularly suited for applications requiring high-speed data acquisition with precise timing.
Product Images

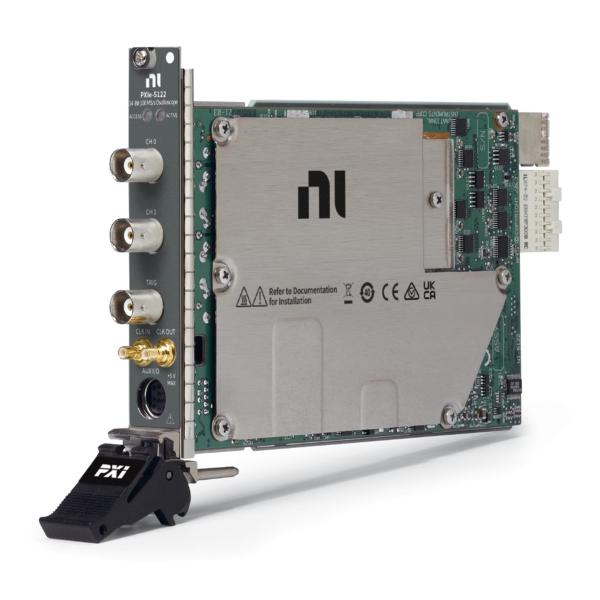

PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution

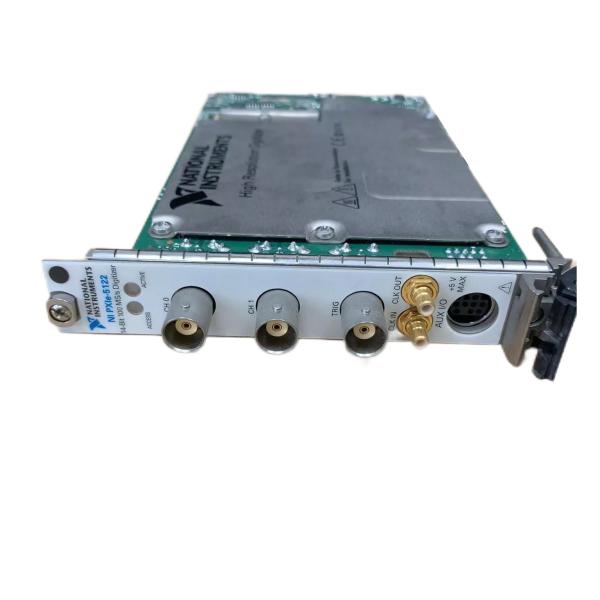

PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution

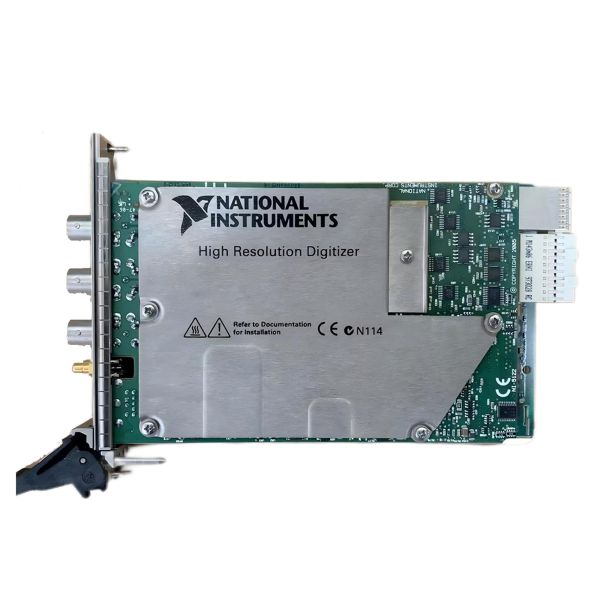

PXIe-5122 High Speed Digitizer 100MHz Bandwidth 14 Bit Resolution
